Drill Machine Spare Parts Names: Complete Guide
Published · Vishwakarma Engineering Works
A drill machine consists of several mechanical components that work together to provide accurate drilling, movement and power transmission. When a component becomes worn or damaged, identifying the correct drill machine spare part is important for repair and maintenance.
In this guide, we explain the names of common drill machine spare parts, their basic functions and what information you should provide when looking for a replacement part.
At Vishwakarma Engineering Works, we manufacture and supply drill machine spare parts for pillar and table drill machines and can also manufacture selected components based on a sample, drawing or dimensions.
Common Drill Machine Spare Parts Names

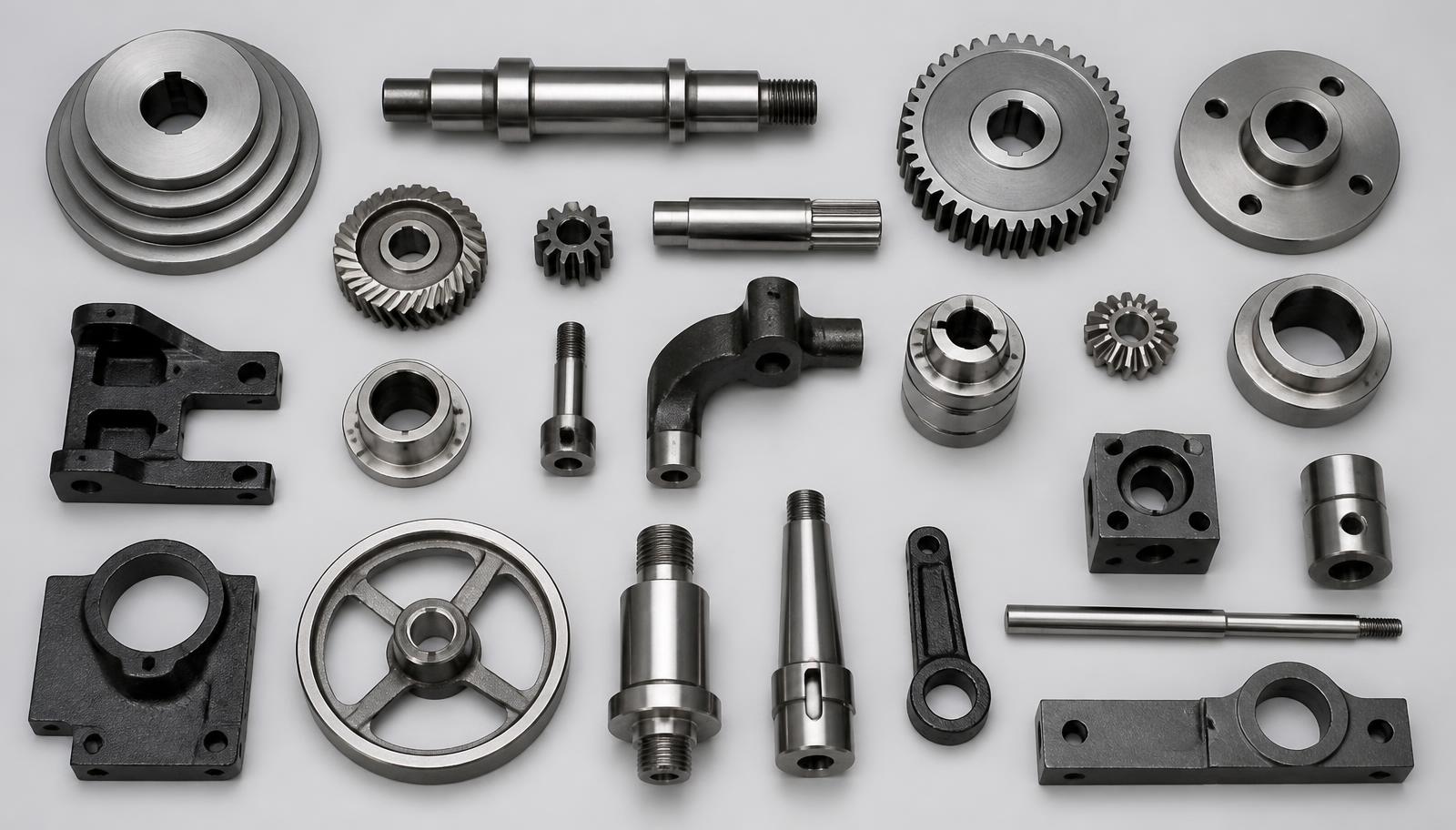

Some commonly used drill machine spare parts include Main Spindle, Main Gear, Back Gear, Rack Gear, Pinion, Pulley, Tapper Block, Coil Spring, Pillar Bracket, Bearing Housing, Rack Housing, and other custom machine components.
The exact names and designs can vary depending on the machine model, manufacturer and construction.
1. Main Spindle
The main spindle is one of the important components of a drill machine. It transfers rotational movement to the drill tool and supports the drilling operation.
A damaged or worn spindle can affect machine performance, accuracy and smooth operation.
When ordering a replacement spindle, it is useful to provide spindle dimensions, machine model, overall length, shaft diameter, thread details, sample or drawing.
2. Main Gear
The main gear is used for transmitting rotational power within the drill machine.
The gear size, number of teeth, bore and other dimensions depend on the particular machine design.
If you need a replacement main gear, providing the old gear or accurate dimensions can help in identifying or manufacturing the correct component.
3. Back Gear
A back gear is used in certain drill machine mechanisms to provide different speed and torque characteristics.
Because gear dimensions vary between machines, the machine model and existing gear specifications are important when selecting a replacement.
4. Rack Gear
The rack gear works with a pinion to convert rotary movement into linear movement. In drilling machines, this mechanism can be used for controlled movement of machine components during drilling.
For replacement, important details can include rack length, tooth profile, tooth dimensions, width, and mounting dimensions.
5. Pinion
The pinion is a small gear that engages with a rack gear. Together, the rack and pinion mechanism helps provide controlled movement in the drill machine.
A worn pinion can result in poor movement, excessive play or difficulty operating the machine.
6. Pulley
The pulley is used to transfer power through a belt-driven system. Drill machines may use different pulley sizes depending on their design and required operating speeds.
When replacing a pulley, specifications such as outer diameter, bore diameter, number of grooves, groove profile, and width can be useful for identifying the correct part.
7. Tapper Block
The tapper block is another component found in certain drill machine mechanisms.
Its exact design and application depend on the machine construction. If you need a replacement tapper block, providing a sample or drawing can help determine the required dimensions.
8. Coil Spring
A coil spring can be used in various mechanical mechanisms of a drill machine to provide tension, return movement or mechanical support.
Spring specifications can include wire diameter, outer diameter, free length, number of coils, and material. The correct spring should be selected according to the machine mechanism.
9. Pillar Bracket
The pillar bracket is used to support or connect components around the machine's pillar structure.
Its dimensions and mounting holes depend on the particular drill machine design. For replacement, a sample or drawing is often helpful.
10. Bearing Housing
A bearing housing supports and positions a bearing within the machine assembly. Proper alignment of the bearing housing is important for smooth operation and reducing unwanted movement.
Replacement bearing housings should match the bearing size and machine mounting dimensions.
11. Rack Housing
The rack housing supports or accommodates the rack mechanism used in the machine.
Its dimensions depend on the particular drill machine design and the associated rack and pinion assembly.
How to Identify the Correct Drill Machine Spare Part
Finding the correct drill machine spare parts is easier when you have accurate information about the existing component. Before requesting a replacement, try to collect:
- Machine model — Provide the machine model or manufacturer if available.
- Part name — Tell the supplier the name of the required part, such as main spindle, gear, pulley, rack gear or pinion.
- Dimensions — Provide important measurements such as diameter, length, width, bore and thread size.
- Sample — If possible, provide the old or damaged component as a physical sample.
- Drawing — A technical drawing with dimensions can help when a custom replacement is required.
- Photographs — Clear photographs from different angles can also help with initial identification.
Custom Drill Machine Spare Parts
Sometimes standard replacement parts are not available, especially for older machines or machines with specific designs. In such cases, custom manufacturing can be an option.
Vishwakarma Engineering Works can manufacture selected drill machine spare parts based on sample, technical drawing, dimensions, machine specifications, or existing component.
If you cannot find the required part in our catalogue, you can contact us with your requirements.
Drill Machine Spare Parts Catalogue
Looking for a specific drill machine spare part? You can browse our complete catalogue of drill machine spare parts, including gears, spindles, pulleys, rack components, pinions, tapper blocks, brackets and other components.
Frequently asked questions
- What are the common drill machine spare parts?
- Common drill machine spare parts include main spindles, gears, back gears, rack gears, pinions, pulleys, tapper blocks, springs, brackets, bearing housings and other machine components.
- How do I identify a drill machine spare part?
- You can identify a part using its name, machine model, dimensions, photographs, sample or technical drawing. Providing the old component is often useful for accurate identification.
- Where can I buy drill machine spare parts?
- You can contact Vishwakarma Engineering Works for drill machine spare parts and share the required part name, dimensions, machine model, sample or drawing for availability and quotation.
- Can custom drill machine spare parts be manufactured?
- Yes. Selected drill machine spare parts can be manufactured according to a sample, drawing, dimensions or specific machine requirements.
- Do drill machine spare parts fit all machines?
- No. Spare parts can differ according to the machine model, manufacturer, dimensions and design. It is important to verify the specifications before ordering a replacement.
